搪玻璃搪瓷反应釜半管夹套的结构特点以及半管成型原理：半管夹套中间部分为釜体，釜体外纵向环绕着半管，且半管内装有循环冷却水，半管横截面为半圆形，搪瓷反应釜釜体与环绕的半管之间是焊接在一起的。半管采用的原料为金属板料。然后将板料通过前后直排的数组成型辊轮(凹凸轮)，凹凸轮的回转带动金属板料向前输送，紧接着进行横向弯曲形成半圆形，随后纵向弯曲呈环状。
Structural characteristics and forming principle of half pipe jacket of glass enamel reactor: the middle part of the half pipe jacket is the reactor body, the reactor body is longitudinally surrounded by the half pipe, and circulating cooling water is installed in the half pipe. The cross section of the half pipe is semicircular, and the body of enamel reactor is welded with the surrounding half pipe. The raw material of the half pipe is metal plate. The metal plate is transported forward through the array forming rollers (concave cams) arranged in front and back. The rotation of concave convex wheels drives the metal plate to be transported forward, followed by transverse bending to form a semicircle, and then longitudinal bending to form a ring.
半管夹套搪玻璃反应釜优点：
从换热来说，普通标准夹套搪玻璃反应釜可以得到更大的换热面积，但夹套里流动速度慢，传热效率低，而半管夹套搪玻璃反应釜则换热面积虽略小，但流动速度快，换热效率高。
Advantages of half pipe jacketed glass lined reactor:
In terms of heat exchange, the ordinary standard jacketed glass lined reactor can obtain a larger heat exchange area, but the flow speed in the jacketed reactor is slow and the heat exchange efficiency is low, while the half tube jacketed glass lined reactor has a slightly smaller heat exchange area, but get faster flow speed and higher heat exchange efficiency.

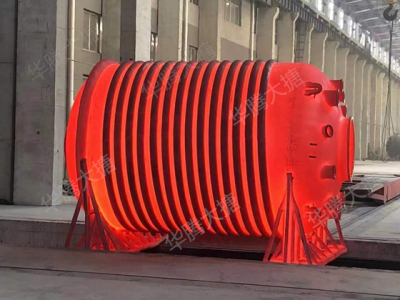

半管夹套反应釜 Half pipe jacketed
